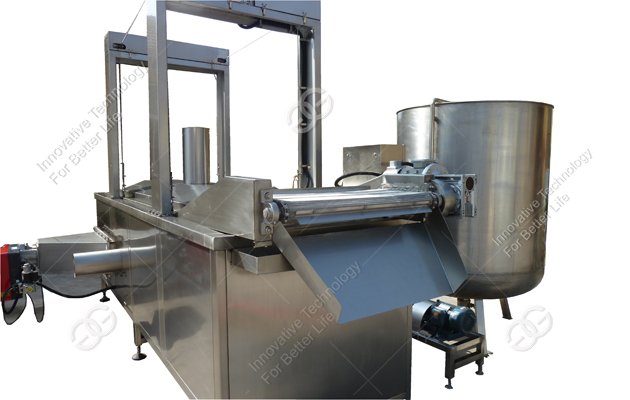

Continuous Frying Machine For Pellet Chips

Continuous Frying Machine For Pellet Chips introduction:
1) the heat transfer heat exchanger is designed for carbon steel seamless steel pipe. 48mm three layers of heat exchanger area of 60 square meters carbon steel heat exchanger can be designed to prevent paste slag.
2) the design of heat exchanger for heat transfer oil can reduce the oil amount by more than 2000kg in the middle of the net belt. At the same time, the net belt can be used for slag scraping.
3) the design of heat transfer heat exchanger and net belt to improve the convenience of cleaning.
4) the two side slag scraping system before and after the design can deliver the food residue to the pan at any time.
5) equipped with two slag truck to facilitate the slag.
6) the design of three sets of synchronous hoisting can simultaneously elevate the hood mesh belt and heat exchanger.
7) the smoke hood adopts the overall design of three exhaust fume holes.
8) the transmission system uses two sets of separate transmission to achieve smooth transmission.
9) with variable frequency speed regulation, the speed of the net belt can be adjusted arbitrarily
10) use the stainless steel distribution box. PLC control, touch screen operation, the temperature of Xiamen Yudian electric Delixi brand brand.
11) a set of centrifugal oil filter, two oil pumps.
12) the diameter of the oil fryer with the oil barrel is 1100mm x 2000mm two.
13:mesh belt adopts spiral net bandwidth, 1000mm chain, 31.875mm wire, 1.4mm wire pitch, 10mm pitch, 14mm axis diameter, 8mm wheelbase 100mm material is 304 mesh belt, use Tu Fu to prevent adhesion.
14:the design of double layer mesh belt can be transported simultaneously to make the floating product reach the purpose of regular frying.
