Full-auto Plantain Chips Production Line|Automatic Banana Chips Making Machine

  • Material: plantain, banana
  • Capacity: 200 sets/ month
  • Loading Port: Shanghai/ Qingdao

Description:

Full-automatic banana chips line adopts the most advanced banana chips making machines. banana chips are crispy snack food similar to potato chips. banana chips are normally made from under-ripe fruits by frying the slices in oil.

Live Chat
Leave Message

Features

Full-automatic plantian chips production line adopts the most advanced banana chips making machines. banana chips are crispy snack food similar to potato chips. banana chips are normally made from under-ripe fruits by frying the slices in oil.

Features of Automatic plantian chips line :
1. every machine is made of high quality stainless steel, up to health standard, easy to clean.
2. the frying machine keeps the frying oil clean, thus reducing oil consumption and improves banana chips quality.
3. high working efficiency, save labor and energy.
4. equipped with advanced and efficient heating system, avoiding energy waste.
5. superior quality and competitive price.
6. suitable for large scale banana chips production.

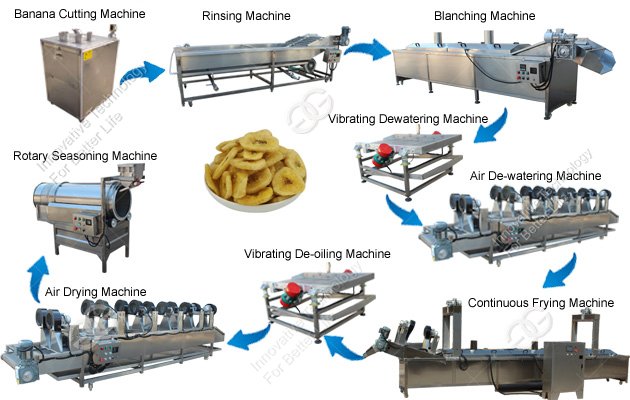

Equipments of Plantain chips processing line:
1. Plantainslicing machine: equipped with sharp blades, bananas are cut uniformly.
2. Hoister: elevates the banana chips into the washing machine.
3. Plantain chips washing machine: to remove small and sticky of the banana chips

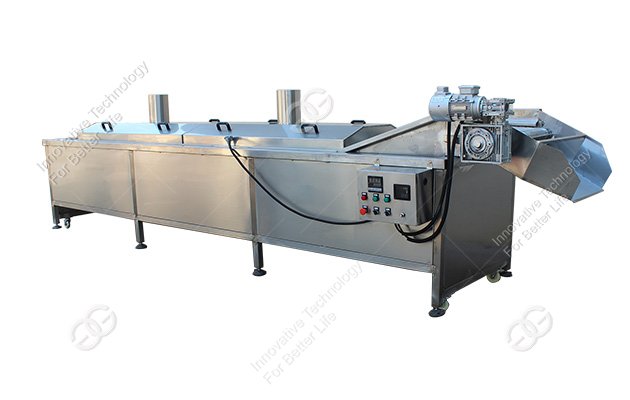

4. Plantain blanching machine: to blanch the banana so that it is easier to frying and keep the color of the banana chips.

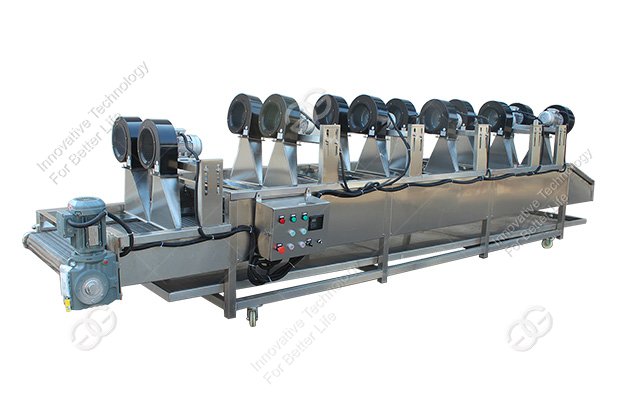

5. Plantain chips dewatering machine: to dewater the water of the banana chips after blanching.

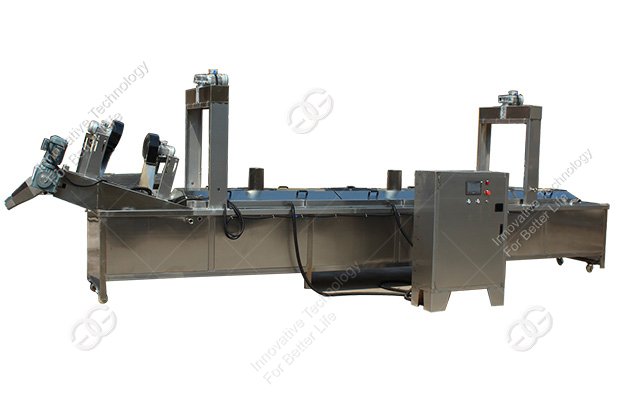

6. Plantain chips frying machine: full automatic frying can reduce the moisture to 2% and get the crispy chips.

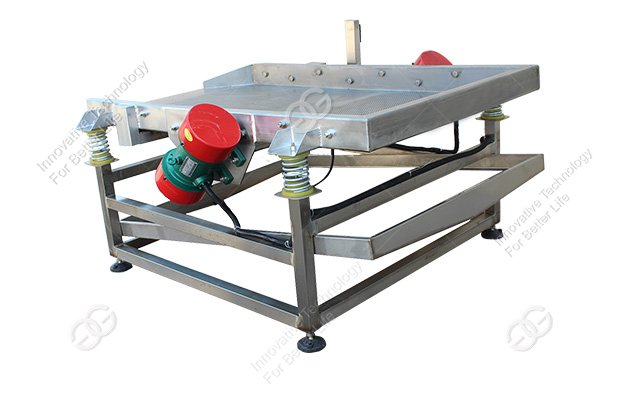

7. Plantain chips de-oiling machine: remove the oil of the banana chips.

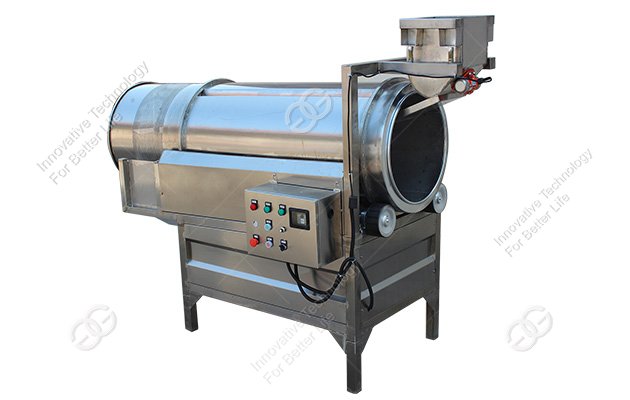

8. The flavoring machine: used for seasoning the fried chips. whichever flavor is needed totally depends on yourself.
9. Picking line: conveying the banana chips into the automatic packing machine.
10. Automatic plantain chips packing machine: full automatic filling, data printing, sealing, etc.


Technical Data

Item Parameters
Plantain Chips Cutting Machine 0.75kw  380V-3/220V-3
650*550*900mm
Rinsing Machine 5kw/380v/50Hz,
4000*1600*900mm
Blanching Machine 70kw/380v/50Hz,
4000*1600*950mm
Vibrating De-oiling Machine 1.5kw/380v/50Hz
1800*1000*900mm
Air De-watering Machine 15kw/380v/50Hz
4000*1200*1400mm
Elevator 0.75kw/380v/50hz
1500*800*1300mm
Electric Heating Fryer Machine 203kw/380v/50Hz
5000*1200*2600mm
Vibrating De-oiling Machine 1.5kw/380v/50Hz
1500*1000*1300mm
Air Drying Machine 8kw/380v/50Hz
4000*1200*1600mm
Elevator 0.75kw/380v/50Hz
2000*800*2200mm
Seasoning Machine 1.5kw/380v/50hz
2000*700*1600mm
Automatic Packing Machine 4kw/380v/50hz
3000*3000*2800mm
