Potato French Fries Production Line for Small Capacity

  • Material: Fresh Potatoes
  • Capacity: 50kg/h,70kg/h,100kg/h
  • Loading Port: Qingdao Port

Description:

This potato french fries production line is suitable for produce french fries in small capacity, such as 50kg/h, 70kg/h, 100kg/h

Live Chat
Leave Message

Features

This potato French fries production line is your economic choice for French fries processing. It keeps the advantages of the previous production line machine and is designed according to the feedbacks from customers. Low cost, low energy-exhausting, multifunction, small dimension, high profit, and easy-repairing are its best features. This production line is special for making frozen French fries in small scale. 50kg/h, 70kg/h and 100kg/h, three capacity model for your choice. This is also automatic French fries Machine for your choice.

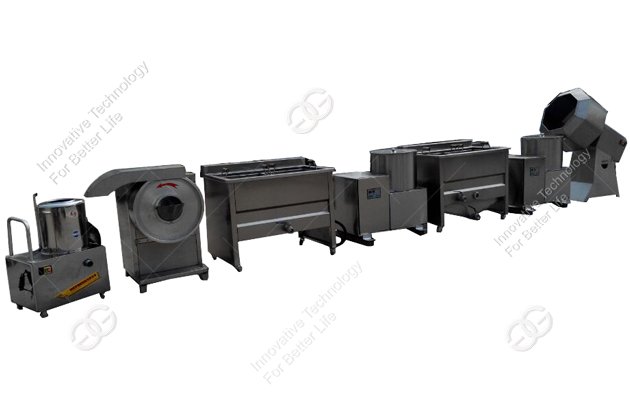

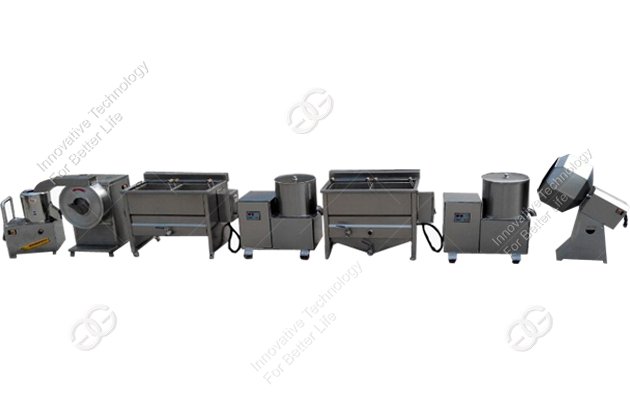

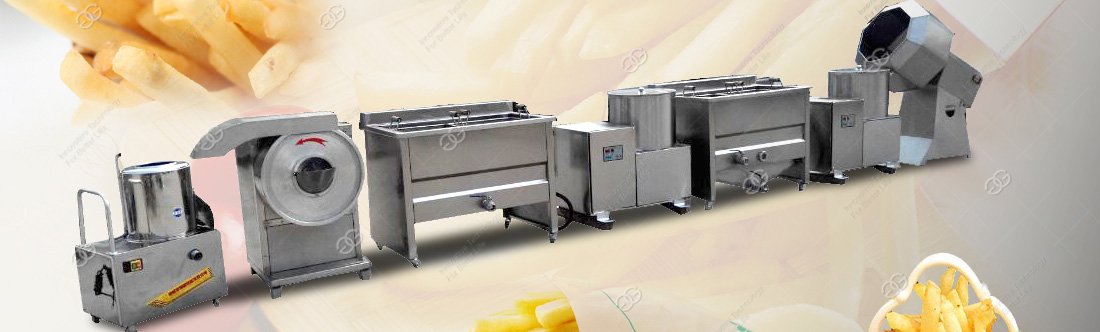

Potato French Fries Production Line
Processing Steps Potato French Fries
♦ The first step is potato washing and peeling. Emery lining cleaning & peeling machine or brush type cleaning peeling machine, both of them could finish cleaning and peeling one time, high efficiency and low cost.
♦ Potato cutting. You could cut potato into both slice and bar shape; besides, the thickness and size of them could be adjusted totally as your preference.
♦ Thirdly, put the potatoes chips or strips into blanching machine for washing, making them look more attractive.
♦ The following step is de-watering in order to save the time of frying and make the products more delicious.
♦ Then Fry the potato chips in the water-oil frying machine: This increases greatly the oil's using cycle, saving lots of cost. What's more, the exact oil temperature guarantees the good quality and taste of potato chips.
♦ De-oiling machine: reduce the oil content of potato chips, make them more delicious.
♦ Freezing machine: made of stainless steel, could make freezing in short time.

Working Video of Small Scale Potato Fries Processing Line

Technical Data

Name Power
Potato Washing Peeling Machine Power: 0.75kw
Weight: 90KG
Size: 650*550*800mm

Potato Cutting Machine
Power: 1.1kw
Weight: 110KG
Size: 950*900*1000mm
Blanching Machine Power: 9kw
Weight: 80KG
Size: 700*700*900mm

Dewater Machine
Power: 1.5kw
Weight: 300KG
Size: 900*500*800mm
French Fries Frying Machine Power: 12kw
Volts: 380v-3/220v-3
Weight: 80KG
Size: 700*700*900mm
Deoiling Machine Power: 1.1kw
Weight: 300KG
Size: 900*500*800mm
Flavoring Machine Power: 1.1kw
Weight: 150KG
Size: 1100*800*1300
Vacuum Packing Machine Power: 1.1kw
Weight: 80kg
Size: 500*500*800mm
